10GBASE SR 300m

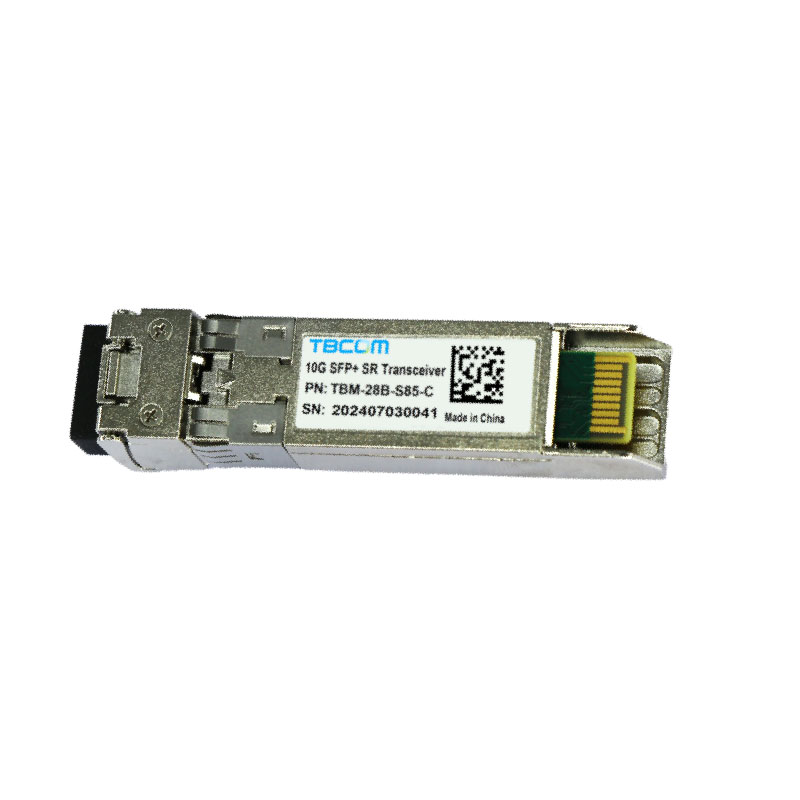

The TBM-S280-S85-x Small Form Factor Pluggable (SFP) transceiver is SFP+ module for duplex optical data communications such as 10GBASE-SR and 10GBASE-SW. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850nm.
The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
產品特點
l 速率支持到11.1Gbps;
l 多模光纖可傳輸至300m;
l 雙LC光接口;
l 可熱插拔SFP+封裝;
l 更低的EMI指標;
l 功耗低于1.2 W;
l 外殼溫度:
商業級: 0°C to +70°C
工業級: -40°C to +85°C
應用
l Inter Rack Connection
l High-speed Servers
l 10GBASE-SW at 9.953Gbps/10GBASE-SR at 10.3125Gbps
l High-performance Computing Clusters
l SAN, Routers, Hubs, Load Balancer
The TBM-S280-S85-x Small Form Factor Pluggable (SFP) transceiver is SFP+ module for duplex optical data communications such as 10GBASE-SR and 10GBASE-SW. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850nm.
The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
